Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm

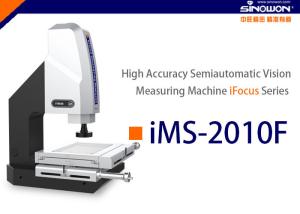

High Accuracy Semiautomatic Vision Measuring Machine iFocus Series,iMS-2010F

• 2D measuring,flatness
• height difference and location degree
• non-contact and contact measurement systems use video and touch probe inputs to perform high precision 2D and 3D measurements.

• Less errors: hysterisis error is within 2um; the accuracy is within 3+L/200um;clear image without distortion;
• With programmable surface 4-ring 8-division LED Cold Illumination and contour LED parallel illumination and internal intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;
• Z-axis equipped with high accuracy linear guide and servo motor control system, realize auto focus measurement, and eliminate the human focus error, enhance measurement accuracy and stability;
• Powerful function iMeasuring2.2 Measuring Software, highly enhance the quality control;
• Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

*L is measuring length,unit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

**Magnification is approximate value, it is related to the dimension of monitor and resolution.
Customers can choose 0.5X or 2X optional objective, and realize image magnification: 13X~86X or 52X~344X.
